Clinker Wagon Loading systems

This system is used to loading clinker in single wagon or two wagons simultaneously through static wagon weigh bridge. The loading is done through Dustless loading spout .The time taken for loading one rack is 2 hr.30 minutes. After the completion of weighment the data is transfer to PC( Both Gross weight and Net weight).

We manufacture and supply precision clinker wagon loading system / Cement Wagon loading/ Fly Ash Loading / for railway open wagon and closed wagons. Our weighing system weighing scales are the most accurate on the market, giving you peace of mind in the safety of the people; our systems greatly benefit offering a multitude of tests ranging from individual wheel weights, axle, bogie, wagon and full train weights. Our system is used to load the cement; fly ash in closed wagons .we can load single wagon or two wagons simultaneously. We can fix target for each wagon, As soon as the wagon weight attains a pre-set value by filling with material (say 50 tons), the system should give the “CLOSE” or “STOP” command to stop the loading of the wagon. The difference of the empty and loaded wagon, which is the actual material loaded in the wagon, should be displayed and recorded in a PC. This system is controls the dust emission and the loading is completely very faster

 High accuracy

 Civil work is most minimum

 Mechanically rugged design

 Suitable for tough environmental conductions

 High reliability using proven load cell design

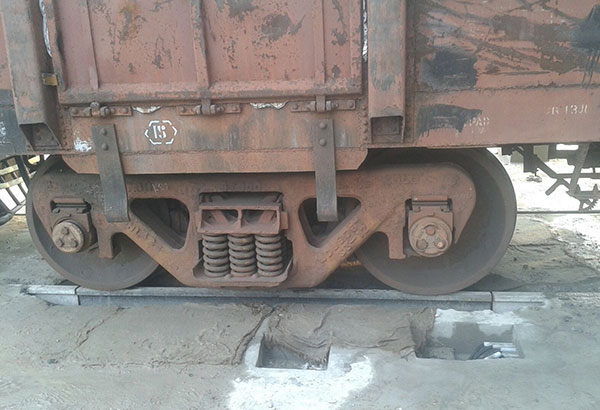

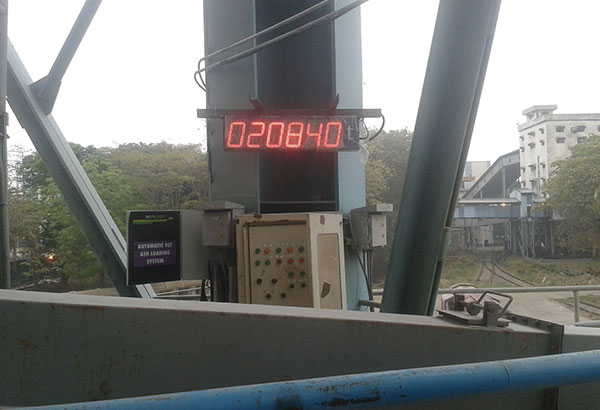

Site Installation Photos
